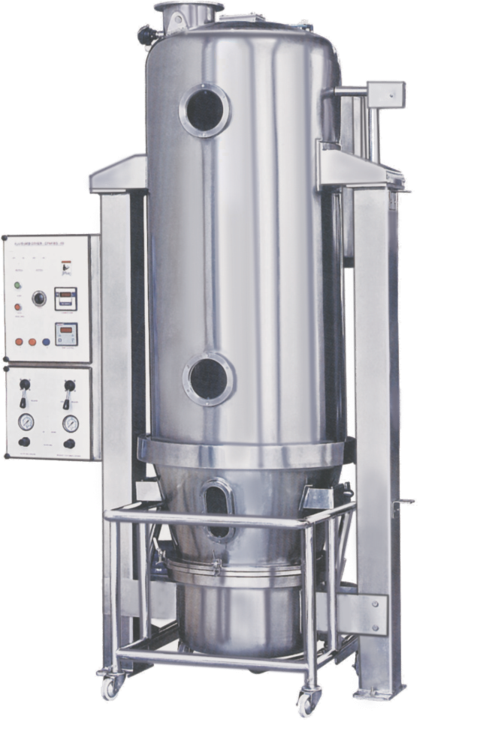

Fluid Bed Dryer
Special Features
- Single Piece Modular Design.
- High Productivity & Superior Design.
- In Compliance with Gmp Guidelines.
- Low Noise Ling With reduced drying time.
Optional Features
- Pneumatic Shaking System.
- PLC with HMI.
- Online sampling provision.
Technical Specification
| TYPE | JTSFBD-LAB | JTSFBD-15 | JTSFBD-30 | JTSFBD-60 |
|---|---|---|---|---|
| Container Volume (Ltr.) | 8 | 46 | 71 | 142 |
| Batch Size (Kg.) Min to Max. | 2.5 to 3.5 | 10 to 12 | 25 to 30 | 50 to 60 |
| Blower Motor (H.P.) | 1 | 2 | 5 | 10 |
| Air Flow (C.F.M.) | 270 | 429 | 706 | 1059 |
| Air Flow (m³/hr) | 460 | 730 | 1200 | 1800 |
| Static Pressure (mm of water) | 600 | 600 | 600 | 600 |
| Steam Pressure (Kg/cm²) | 3.5 | 3.5 | 3.5 | 3.5 |
| Steam Consumption (Kg/hr) | 26 | 36 | 50 | 72 |
| Electrical Heater (Kw) | 9 | 18 | 20 | 36 |
| Compressed Air Pressure (bar) | 6 | 6 | 6 | 6 |
| Drying Temperature (°C) | 45-80 | 45-80 | 45-80 | 45-80 |
| Electrical Supply | 3 Ø, AC | 3 Ø, AC | 3 Ø, AC | 3 Ø, AC |
| TYPE | JTSFBD-120 | JTSFBD-200 | JTSFBD-300 | JTSFBD-400 | JTSFBD-500 |
|---|---|---|---|---|---|
| Container Volume (Ltr.) | 288 | 475 | 650 | 875 | 1110 |
| Batch Size (Kg.) Min to Max. | 100 to 120 | 80 to 200 | 200 to 300 | 300 to 400 | 400 to 500 |
| Blower Motor (H.P.) | 15 | 25 | 30 | 50 | 50 |
| Air Flow (C.F.M.) | 1882 | 2588 | 3235 | 3824 | 4412 |
| Air Flow (m³/hr) | 3200 | 4400 | 5500 | 6500 | 7500 |
| Static Pressure (mm of water) | 800 | 800 | 800 | 900 | 900 |
| Steam Pressure (Kg/cm²) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Steam Consumption (Kg/hr) | 144 | 216 | 250 | 288 | 360 |
| Electrical Heater (Kw) | ** | ** | ** | ** | ** |
| Compressed Air Pressure (bar) | 6 | 6 | 6 | 6 | 6 |
| Drying Temperature (°C) | 45-80 | 45-80 | 45-80 | 45-80 | 45-80 |
| Electrical Supply | 3 Ø, AC | 3 Ø, AC | 3 Ø, AC | 3 Ø, AC | 3 Ø, AC |
