Vacuum Conveying System

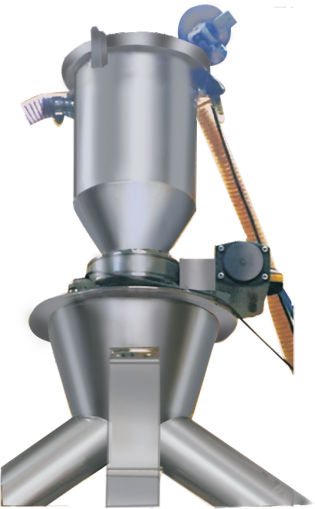

Tablet Press Loading System
JTS vacuum tablet press loaders are available in complete, ready-to-operate systems, for mounting on single or dual hopper tablet presses. Constructed from 316 Stainless Steel and USDA accepted.
Salient Features
- Compact design receiver package with rates of 200-250 Kg. per hour.
- Eliminate manual scooping of product and messy dumping or mishandling. Draw material directly from drums, boxes, storage containers, process vessels.
- Dust-tight connection of receiver to press hopper provides maximum cleanliness and product integrity.
- Easy to clean. Four quick-acting heavy duty clamps facilitate disassembly for cleaning and service. No tools required!
- Automatic pulse jet filter cleaning ensures peak operating performance.
- Level sensor automatically starts conveying cycle when material level reaches low level in the tablet press hopper.
- Minimum maintenance - few moving parts.
- Complete package includes: receiver, power unit, vacuum, hose, conveying wand, and control panel.
- Mounting lugs for easy installation.
- Pi at source remote v. located. No liftino heavy cover with venturi nower unit attached!
Technical Specification
| MODEL | JTSVTS |
|---|---|
| Capacity* | 200-250 Kg./Hr. |
| Vacuum Source | Vacuum Pump / Air-powered venturi / Electric blower |
| Filter Media | Unique Uni-filter |
| Discharge Valve | Full opening dump valve |
| Inlet Size | 1 1/2" inch |
| Receiver Capacity | 0.25 cu /ft |
| Electrical Voltage | 110/220 Volts, 50/60Hz., 1-phase |
| Material of Construction | 316 stainless steel |
| Level Control | Automatic level sensor |
| Filter Cleaning | Automatic pulse-jet |
| Compressed Air Requirements | 1/2" air line, 35 CFM @ 60 PSIG |
| System Control | PLC |
ONLINE VIBRO SHIFTER COMPACT SIEVE
Vibro sifters, also known as safety screeners, vibrating shifters, vibro sieves, check screeners or control sieves, are used to ensure the correct product quality of powders or liquids is achieved by removing oversize contamination. SM Compact Sieve ranges of sifters are incredibly versatile and can be used for size based separation of almost any material. These vibrating sifters fit neatly into production lines, providing considerable screening capacity without requiring excessive headroom. Its innovative design means these machines are less than half the height of a traditional circular vibro sifter machine.Operating and cleaning is quick and easy, making this range of sifting machines perfect for all processing industries. A wide range of sizes and options means the machine can be tailored to suit your exact needs.
Technical Specification
| MODEL | JTSVS22” |
|---|---|
| Motor | 1 H.P. / 1440 RPM |
| Charging Height | 1330 mm |
| Discharging Height | 800 mm |
| Screen Diameter | 610 mm |
| Capacity / Hour* | 20 TO 300 Kgs. |
