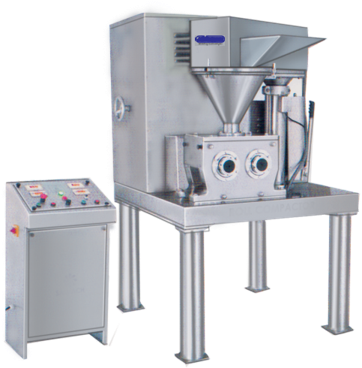

Roll Compactor
Also Available Online Roll Compactor
- Powder Charging Hopper
- Powder Feeding Hopper
- Powder Feed Screw
- Compacting Roller
- Granulator
- Sifter
- Storage Drum
Technical Specification
| TYPE | JTSRC-200/50 | JTSRC-200/75 | JTSRC-200/100 |
|---|---|---|---|
| Output * | 5 to 60 Kgs / hr. | 10 to 100 Kgs / hr. | 50 to 250 Kgs / hr. |
| Roll Size | Ø 200mm x 50mm (W) | Ø 200mm x 75mm (W) | Ø 200mm x 100mm (W) |
| Roll Speed | 6 to 25 RPM (Step Pulley drive) | 6 to 25 RPM (Step Pulley drive) | 6 to 25 RPM (Step Pulley drive) |
| Feed Screw Speed | 5 to 60 RPM (Through A.C. Drive) | 5 to 60 RPM (Through A.C. Drive) | 5 to 60 RPM (Through A.C. Drive) |
| Roll Drive Motor | 5 HP, 960 RPM, 3 Ph | 5 HP, 960 RPM, 3 Ph | 7.5 HP, 960 RPM, 3 Ph |
| Feed Screw Drive Motor | 3 HP, 1440 RPM, 3 Ph | 3 HP, 1440 RPM, 3 Ph | 3 HP, 1440 RPM, 3 Ph |
LAB ROLL COMPACTOR PLAIN & WATER JACKETTED
Optional : Hydraulic System for Rear Roller
Applications
- To increase the bulk density
- To achieve better granulation & sieve analysis
- To reduce process cost and improve the end product quality
- Free flowing granules.
- Dust free granules to facilitates handling
- Compact granules to reduce pack size
- Granules to fill in smaller capsule
- Granules for Tableting process
Technical Specification
| TYPE | JTSRC-200/25 |
|---|---|
| Working Capacity* | Up to 5 kg/Hour |
| Roll Speed | 1 - 30 RPM |
| Screw Speed | 1 - 100 RPM |
| Roller Motor | 3 HP / 3 Phase |
| Feeder Motor | 2 HP / 3 Phase |
